Hadoop部署--验证分布式是否成功

姜智浩 Lv5
  2025-09-24 11:45:14 2025-09-24 11:45:14 Created   2025-09-24 15:30:29 2025-09-24 15:30:29 Updated      4.7k Words  26 Mins

我遇到的所有问题都能在网上找到

前提条件

  • 你已经创建了3台虚拟机
  • 每台虚拟机都安装了jdk和Hadoop

启动

将3台虚拟机都打开 在主节点运行

1
2
start-dfs.sh
start-yarn.sh

虚拟机会输出

1
2
3
4
5
6
7
8
9
zhihaojiang@linux-24-10:~$ start-dfs.sh
Starting namenodes on [linux-24-10]
Starting datanodes
Starting secondary namenodes [linux-24-10]
2025-09-24 05:27:13,484 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable

zhihaojiang@linux-24-10:~$ start-yarn.sh
Starting resourcemanager
Starting nodemanagers

不用管warning

然后输入jps
主节点的虚拟机会输出

1
2
3
4
5
6
7
zhihaojiang@linux-24-10:~$ jps
8245 DataNode
8071 NameNode
8969 NodeManager
8633 ResourceManager
8445 SecondaryNameNode
9134 Jps

主要是看是否有这五个东西

从节点的虚拟机会输出

1
2
3
4
zhihaojiang@linux-24-10-node4:~$ jps
3675 NodeManager
3516 DataNode
3806 Jps

看到这些都存在 那么你的Hadoop基本上是启动成功了

检查部署是否正常

在主节点输入

1
hdfs dfsadmin -report

其会输出

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
zhihaojiang@linux-24-10:~$ hdfs dfsadmin -report
2025-09-24 05:31:46,974 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Configured Capacity: 31392067584 (29.24 GB)
Present Capacity: 7492927488 (6.98 GB)
DFS Remaining: 7492829184 (6.98 GB)
DFS Used: 98304 (96 KB)
DFS Used%: 0.00%
Replicated Blocks:
	Under replicated blocks: 0
	Blocks with corrupt replicas: 0
	Missing blocks: 0
	Missing blocks (with replication factor 1): 0
	Low redundancy blocks with highest priority to recover: 0
	Pending deletion blocks: 0
Erasure Coded Block Groups:
	Low redundancy block groups: 0
	Block groups with corrupt internal blocks: 0
	Missing block groups: 0
	Low redundancy blocks with highest priority to recover: 0
	Pending deletion blocks: 0

-------------------------------------------------
Live datanodes (3):

Name: 172.16.79.100:9866 (linux-24-10-node2)
Hostname: linux-24-10-node2
Decommission Status : Normal
Configured Capacity: 10464022528 (9.75 GB)
DFS Used: 32768 (32 KB)
Non DFS Used: 7416832000 (6.91 GB)
DFS Remaining: 2493509632 (2.32 GB)
DFS Used%: 0.00%
DFS Remaining%: 23.83%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 0
Last contact: Wed Sep 24 05:31:45 UTC 2025
Last Block Report: Wed Sep 24 05:27:09 UTC 2025
Num of Blocks: 0


Name: 172.16.79.120:9866 (linux-24-10-node4)
Hostname: linux-24-10-node4
Decommission Status : Normal
Configured Capacity: 10464022528 (9.75 GB)
DFS Used: 32768 (32 KB)
Non DFS Used: 7425851392 (6.92 GB)
DFS Remaining: 2484490240 (2.31 GB)
DFS Used%: 0.00%
DFS Remaining%: 23.74%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 0
Last contact: Wed Sep 24 05:31:45 UTC 2025
Last Block Report: Wed Sep 24 05:27:09 UTC 2025
Num of Blocks: 0


Name: 172.16.79.129:9866 (linux-24-10)
Hostname: linux-24-10
Decommission Status : Normal
Configured Capacity: 10464022528 (9.75 GB)
DFS Used: 32768 (32 KB)
Non DFS Used: 7395512320 (6.89 GB)
DFS Remaining: 2514829312 (2.34 GB)
DFS Used%: 0.00%
DFS Remaining%: 24.03%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 0
Last contact: Wed Sep 24 05:31:45 UTC 2025
Last Block Report: Wed Sep 24 05:27:09 UTC 2025
Num of Blocks: 0

Live datanodes (3):

说明你有三台机器都存活
或者在浏览器输入

1
2

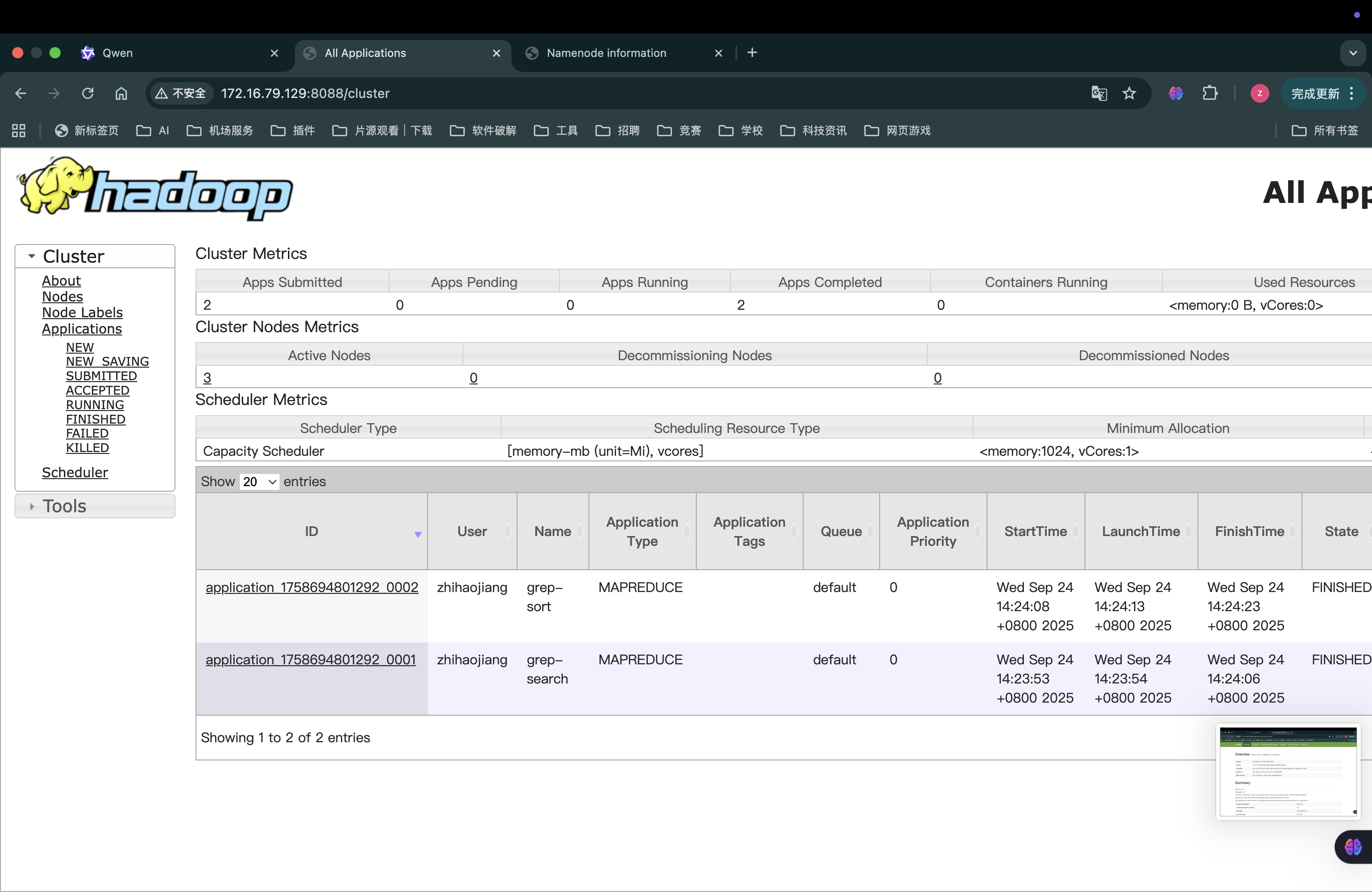

虚拟机IP:8088
虚拟机IP:9870

可以看到两个界面

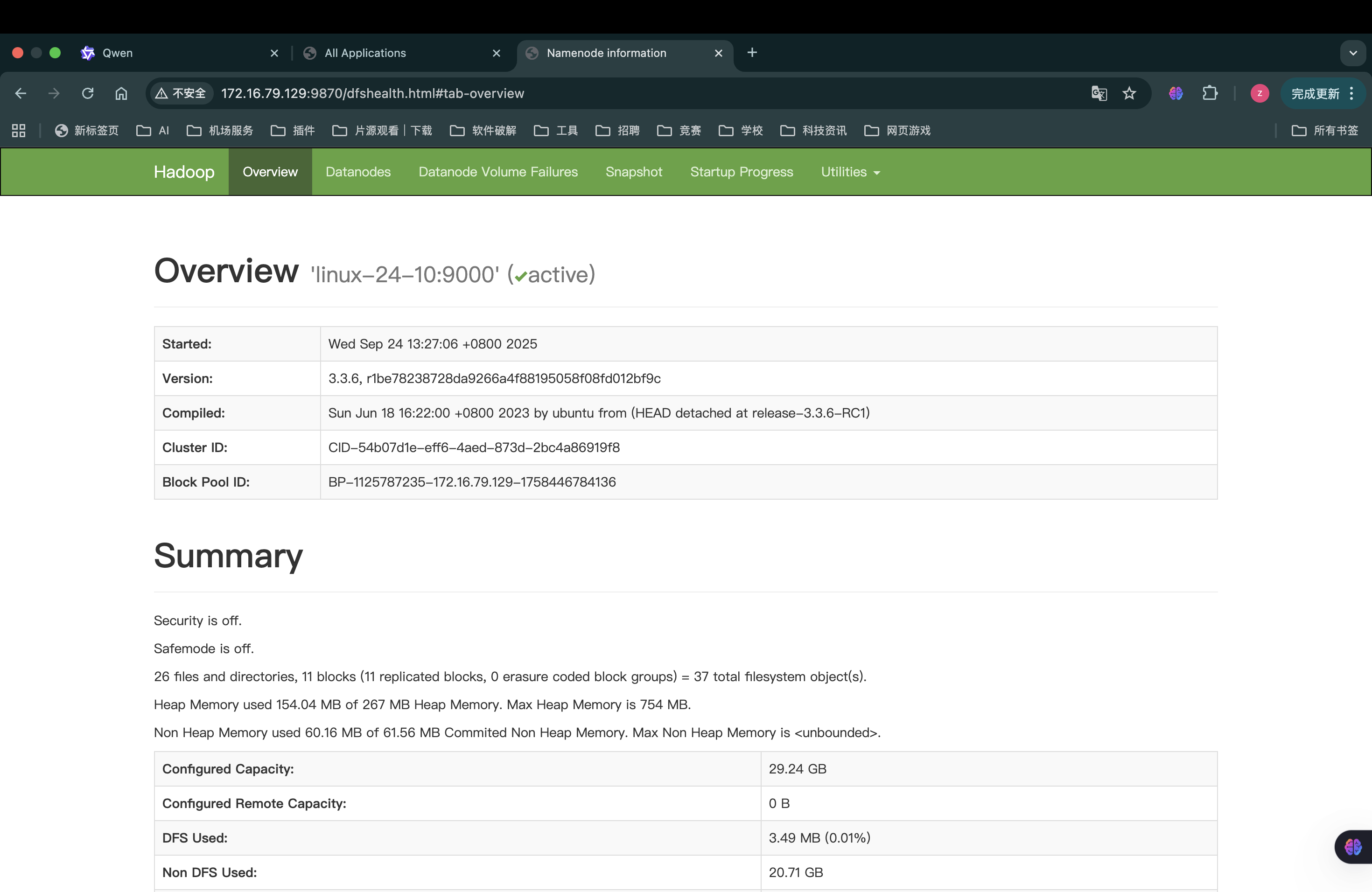

在9870端口的界面中Overview右边有你虚拟机的名称和一个(active)
若有(✅active)说明成功启动的

检查运行是否正常

我们创建一个文件

1
2
zhihaojiang@linux-24-10:~$ nano input.txt
# 使用vim也行 我喜欢用nano

随便在文件中写些什么东西 例如

1
2
3
4
This is a dfs test.
Another line with dfs.
No match here.
dfs appears again.

之后推送到Hadoop上

1
2
# 路径换成自己的路径
zhihaojiang@linux-24-10:~$ hdfs dfs -mkdir -p /user/zhihaojiang/grep/input

解释上述命令

我解释下上述命令
hdfs dfs
调用 Hadoop 的HDFS 文件系统客户端工具 用于操作 HDFS

-mkdir
HDFS 的创建目录命令 对应 Linux 的mkdir

-p
递归创建父目录

/user/zhihaojiang/grep/input
你自己想要在 HDFS 上创建的完整目录路径 记得路径换成自己的路径

运行

1
2
# 路径换成自己的路径
hdfs dfs -put input.txt /user/zhihaojiang/grep/input/
1
2
# 路径换成自己的路径
hdfs dfs -ls /user/zhihaojiang/grep/input

显示

1
2
3
4
5
6
zhihaojiang@linux-24-10:~$ hdfs dfs -put input.txt /user/zhihaojiang/grep/input/
2025-09-24 05:56:03,010 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
zhihaojiang@linux-24-10:~$ hdfs dfs -ls /user/zhihaojiang/grep/input
2025-09-24 05:56:10,664 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Found 1 items
-rw-r--r--   3 zhihaojiang supergroup         77 2025-09-24 05:56 /user/zhihaojiang/grep/input/input.txt

重点看

-rw-r–r– 3 zhihaojiang supergroup 77 2025-09-24 05:56 /user/zhihaojiang/grep/input/input.txt

这说明 已经确认文件已存在 副本数 = 3

接下来我们测试官方的Grep示例

1
2
3
4
5
# 路径换成自己的路径
hadoop jar ~/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-*.jar grep \
  /user/zhihaojiang/grep/input \
  /user/zhihaojiang/grep/output \
  'dfs[a-z.]*'

他会输出很多东西 但你只需要看到

1
2025-09-24 06:24:24,842 INFO mapreduce.Job: Job job_1758694801292_0002 completed successfully

你还可以运行

1
zhihaojiang@linux-24-10:~/hadoop/etc/hadoop$ hdfs dfs -cat /user/zhihaojiang/grep/output/part-r-00000

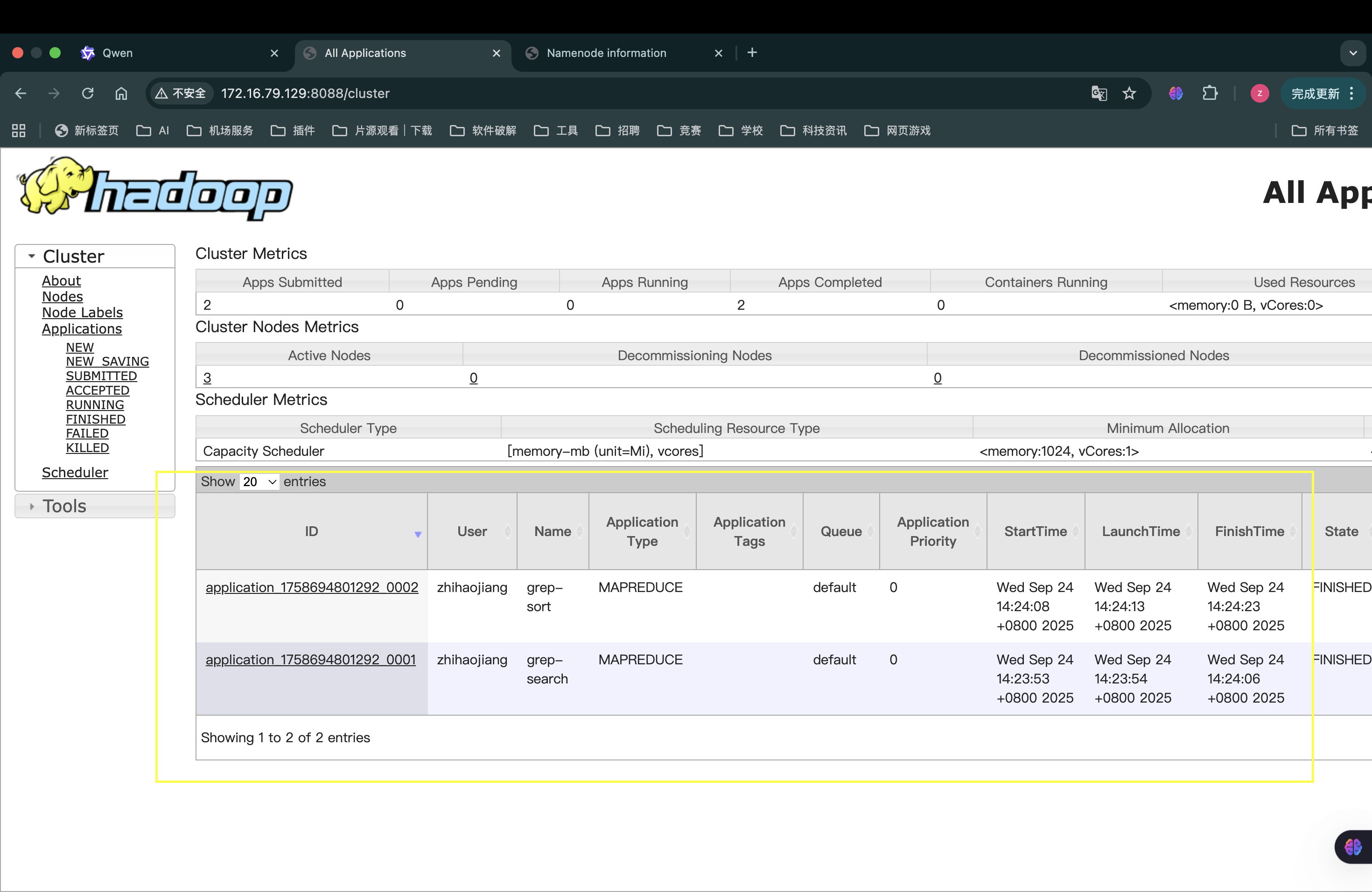

出现completed successfully说明运行成功 你也可以在浏览器上刷新8088端口 出现下述黄色框中的就成功运行了


但是 在进行

测试

接下来我们测试官方的Grep示例

1
2
3
4
5
# 路径换成自己的路径
hadoop jar ~/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-*.jar grep \
  /user/zhihaojiang/grep/input \
  /user/zhihaojiang/grep/output \
  'dfs[a-z.]*'

会存在一些问题

问题1

例如 运行后显示

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
zhihaojiang@linux-24-10:~$ hadoop jar ~/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-*.jar grep \
  /user/zhihaojiang/grep/input \
  /user/zhihaojiang/grep/output \
  'dfs[a-z.]*'
2025-09-24 06:11:23,729 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2025-09-24 06:11:24,049 INFO client.DefaultNoHARMFailoverProxyProvider: Connecting to ResourceManager at /172.16.79.129:8032
2025-09-24 06:11:24,396 INFO mapreduce.JobResourceUploader: Disabling Erasure Coding for path: /tmp/hadoop-yarn/staging/zhihaojiang/.staging/job_1758691653973_0001
2025-09-24 06:11:24,669 INFO input.FileInputFormat: Total input files to process : 1
2025-09-24 06:11:24,723 INFO mapreduce.JobSubmitter: number of splits:1
2025-09-24 06:11:24,829 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1758691653973_0001
2025-09-24 06:11:24,829 INFO mapreduce.JobSubmitter: Executing with tokens: []
2025-09-24 06:11:24,934 INFO conf.Configuration: resource-types.xml not found
2025-09-24 06:11:24,934 INFO resource.ResourceUtils: Unable to find 'resource-types.xml'.
2025-09-24 06:11:25,462 INFO impl.YarnClientImpl: Submitted application application_1758691653973_0001
2025-09-24 06:11:25,499 INFO mapreduce.Job: The url to track the job: http://linux-24-10:8088/proxy/application_1758691653973_0001/
2025-09-24 06:11:25,499 INFO mapreduce.Job: Running job: job_1758691653973_0001
2025-09-24 06:11:30,609 INFO mapreduce.Job: Job job_1758691653973_0001 running in uber mode : false
2025-09-24 06:11:30,612 INFO mapreduce.Job:  map 0% reduce 0%
2025-09-24 06:11:30,648 INFO mapreduce.Job: Job job_1758691653973_0001 failed with state FAILED due to: Application application_1758691653973_0001 failed 2 times due to AM Container for appattempt_1758691653973_0001_000002 exited with  exitCode: 1
Failing this attempt.Diagnostics: [2025-09-24 06:11:29.653]Exception from container-launch.
Container id: container_1758691653973_0001_02_000001
Exit code: 1

[2025-09-24 06:11:29.674]Container exited with a non-zero exit code 1. Error file: prelaunch.err.
Last 4096 bytes of prelaunch.err :
Last 4096 bytes of stderr :
Error: Could not find or load main class org.apache.hadoop.mapreduce.v2.app.MRAppMaster

Please check whether your <HADOOP_HOME>/etc/hadoop/mapred-site.xml contains the below configuration:
<property>
  <name>yarn.app.mapreduce.am.env</name>
  <value>HADOOP_MAPRED_HOME=${full path of your hadoop distribution directory}</value>
</property>
<property>
  <name>mapreduce.map.env</name>
  <value>HADOOP_MAPRED_HOME=${full path of your hadoop distribution directory}</value>
</property>
<property>
  <name>mapreduce.reduce.env</name>
  <value>HADOOP_MAPRED_HOME=${full path of your hadoop distribution directory}</value>
</property>

[2025-09-24 06:11:29.675]Container exited with a non-zero exit code 1. Error file: prelaunch.err.
Last 4096 bytes of prelaunch.err :
Last 4096 bytes of stderr :
Error: Could not find or load main class org.apache.hadoop.mapreduce.v2.app.MRAppMaster

Please check whether your <HADOOP_HOME>/etc/hadoop/mapred-site.xml contains the below configuration:
<property>
  <name>yarn.app.mapreduce.am.env</name>
  <value>HADOOP_MAPRED_HOME=${full path of your hadoop distribution directory}</value>
</property>
<property>
  <name>mapreduce.map.env</name>
  <value>HADOOP_MAPRED_HOME=${full path of your hadoop distribution directory}</value>
</property>
<property>
  <name>mapreduce.reduce.env</name>
  <value>HADOOP_MAPRED_HOME=${full path of your hadoop distribution directory}</value>
</property>

For more detailed output, check the application tracking page: http://linux-24-10:8088/cluster/app/application_1758691653973_0001 Then click on links to logs of each attempt.
. Failing the application.
2025-09-24 06:11:30,675 INFO mapreduce.Job: Counters: 0
2025-09-24 06:11:30,707 INFO client.DefaultNoHARMFailoverProxyProvider: Connecting to ResourceManager at /172.16.79.129:8032
2025-09-24 06:11:30,731 INFO mapreduce.JobResourceUploader: Disabling Erasure Coding for path: /tmp/hadoop-yarn/staging/zhihaojiang/.staging/job_1758691653973_0002
2025-09-24 06:11:30,836 INFO mapreduce.JobSubmitter: Cleaning up the staging area /tmp/hadoop-yarn/staging/zhihaojiang/.staging/job_1758691653973_0002
org.apache.hadoop.mapreduce.lib.input.InvalidInputException: Input path does not exist: hdfs://172.16.79.129:9000/user/zhihaojiang/grep-temp-212921694
	at org.apache.hadoop.mapreduce.lib.input.FileInputFormat.singleThreadedListStatus(FileInputFormat.java:340)
	at org.apache.hadoop.mapreduce.lib.input.FileInputFormat.listStatus(FileInputFormat.java:279)
	at org.apache.hadoop.mapreduce.lib.input.SequenceFileInputFormat.listStatus(SequenceFileInputFormat.java:59)
	at org.apache.hadoop.mapreduce.lib.input.FileInputFormat.getSplits(FileInputFormat.java:404)
	at org.apache.hadoop.mapreduce.JobSubmitter.writeNewSplits(JobSubmitter.java:310)
	at org.apache.hadoop.mapreduce.JobSubmitter.writeSplits(JobSubmitter.java:327)
	at org.apache.hadoop.mapreduce.JobSubmitter.submitJobInternal(JobSubmitter.java:200)
	at org.apache.hadoop.mapreduce.Job$11.run(Job.java:1678)
	at org.apache.hadoop.mapreduce.Job$11.run(Job.java:1675)
	at java.security.AccessController.doPrivileged(Native Method)
	at javax.security.auth.Subject.doAs(Subject.java:422)
	at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1899)
	at org.apache.hadoop.mapreduce.Job.submit(Job.java:1675)
	at org.apache.hadoop.mapreduce.Job.waitForCompletion(Job.java:1696)
	at org.apache.hadoop.examples.Grep.run(Grep.java:94)
	at org.apache.hadoop.util.ToolRunner.run(ToolRunner.java:82)
	at org.apache.hadoop.examples.Grep.main(Grep.java:103)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.hadoop.util.ProgramDriver$ProgramDescription.invoke(ProgramDriver.java:71)
	at org.apache.hadoop.util.ProgramDriver.run(ProgramDriver.java:144)
	at org.apache.hadoop.examples.ExampleDriver.main(ExampleDriver.java:74)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.hadoop.util.RunJar.run(RunJar.java:328)
	at org.apache.hadoop.util.RunJar.main(RunJar.java:241)
Caused by: java.io.IOException: Input path does not exist: hdfs://172.16.79.129:9000/user/zhihaojiang/grep-temp-212921694
	at org.apache.hadoop.mapreduce.lib.input.FileInputFormat.singleThreadedListStatus(FileInputFormat.java:313)
	... 29 more

这是因为Hadoop MapReduce 作业无法启动 ApplicationMaster 根本原因是 环境变量 HADOOP_MAPRED_HOME 未正确配置
错误信息

1
Error: Could not find or load main class org.apache.hadoop.mapreduce.v2.app.MRAppMaster

解决方法

  1. 进入 Hadoop 配置目录
1
cd ~/hadoop/etc/hadoop

查看是否已有 mapred-site.xml

1
ls mapred-site.xml
  1. 编辑文件
1
nano mapred-site.xml
  1. 添加关键配置
    在 标签内 添加以下 3 个属性：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<configuration>
  <!-- 其他已有配置... -->

  <property>
    <name>yarn.app.mapreduce.am.env</name>
    <value>HADOOP_MAPRED_HOME=/home/zhihaojiang/hadoop</value>
  </property>

  <property>
    <name>mapreduce.map.env</name>
    <value>HADOOP_MAPRED_HOME=/home/zhihaojiang/hadoop</value>
  </property>

  <property>
    <name>mapreduce.reduce.env</name>
    <value>HADOOP_MAPRED_HOME=/home/zhihaojiang/hadoop</value>
  </property>

</configuration>

注意 路径一定是绝对路径

  1. 同步配置到所有节点
1
2
3
# 我的从节点主机名是 linux-24-10-node2 和 linux-24-10-node4
scp ~/hadoop/etc/hadoop/mapred-site.xml linux-24-10-node2:~/hadoop/etc/hadoop/
scp ~/hadoop/etc/hadoop/mapred-site.xml linux-24-10-node4:~/hadoop/etc/hadoop/
  1. 重启 YARN
1
2
3
# 在主节点执行
stop-yarn.sh
start-yarn.sh
  1. 重新运行 Grep 示例
1
2
3
4
5
6
7
8
# 先删除旧的输出目录（如果存在）
hdfs dfs -rm -r /user/zhihaojiang/grep/output

# 重新运行
hadoop jar ~/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-*.jar grep \
  /user/zhihaojiang/grep/input \
  /user/zhihaojiang/grep/output \
  'dfs[a-z.]*'

问题2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
zhihaojiang@linux-24-10:~/hadoop/etc/hadoop$ hadoop jar ~/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-*.jar grep \
  /user/zhihaojiang/grep/input \
  /user/zhihaojiang/grep/output \
  'dfs[a-z.]*'
2025-09-24 06:15:54,235 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2025-09-24 06:15:54,535 INFO client.DefaultNoHARMFailoverProxyProvider: Connecting to ResourceManager at /172.16.79.129:8032
2025-09-24 06:15:54,836 INFO mapreduce.JobResourceUploader: Disabling Erasure Coding for path: /tmp/hadoop-yarn/staging/zhihaojiang/.staging/job_1758694526692_0001
2025-09-24 06:15:55,078 INFO input.FileInputFormat: Total input files to process : 1
2025-09-24 06:15:55,133 INFO mapreduce.JobSubmitter: number of splits:1
2025-09-24 06:15:55,215 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1758694526692_0001
2025-09-24 06:15:55,215 INFO mapreduce.JobSubmitter: Executing with tokens: []
2025-09-24 06:15:55,339 INFO conf.Configuration: resource-types.xml not found
2025-09-24 06:15:55,339 INFO resource.ResourceUtils: Unable to find 'resource-types.xml'.
2025-09-24 06:15:55,726 INFO impl.YarnClientImpl: Submitted application application_1758694526692_0001
2025-09-24 06:15:55,768 INFO mapreduce.Job: The url to track the job: http://linux-24-10:8088/proxy/application_1758694526692_0001/
2025-09-24 06:15:55,768 INFO mapreduce.Job: Running job: job_1758694526692_0001
2025-09-24 06:16:00,853 INFO mapreduce.Job: Job job_1758694526692_0001 running in uber mode : false
2025-09-24 06:16:00,857 INFO mapreduce.Job:  map 0% reduce 0%
2025-09-24 06:16:01,920 INFO mapreduce.Job: Task Id : attempt_1758694526692_0001_m_000000_0, Status : FAILED
Container launch failed for container_1758694526692_0001_01_000002 : org.apache.hadoop.yarn.exceptions.InvalidAuxServiceException: The auxService:mapreduce_shuffle does not exist
	at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateExceptionImpl(SerializedExceptionPBImpl.java:171)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateException(SerializedExceptionPBImpl.java:182)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.deSerialize(SerializedExceptionPBImpl.java:106)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$Container.launch(ContainerLauncherImpl.java:163)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$EventProcessor.run(ContainerLauncherImpl.java:394)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)

2025-09-24 06:16:03,974 INFO mapreduce.Job: Task Id : attempt_1758694526692_0001_m_000000_1, Status : FAILED
Container launch failed for container_1758694526692_0001_01_000003 : org.apache.hadoop.yarn.exceptions.InvalidAuxServiceException: The auxService:mapreduce_shuffle does not exist
	at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateExceptionImpl(SerializedExceptionPBImpl.java:171)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateException(SerializedExceptionPBImpl.java:182)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.deSerialize(SerializedExceptionPBImpl.java:106)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$Container.launch(ContainerLauncherImpl.java:163)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$EventProcessor.run(ContainerLauncherImpl.java:394)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)

2025-09-24 06:16:06,012 INFO mapreduce.Job: Task Id : attempt_1758694526692_0001_m_000000_2, Status : FAILED
Container launch failed for container_1758694526692_0001_01_000004 : org.apache.hadoop.yarn.exceptions.InvalidAuxServiceException: The auxService:mapreduce_shuffle does not exist
	at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateExceptionImpl(SerializedExceptionPBImpl.java:171)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateException(SerializedExceptionPBImpl.java:182)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.deSerialize(SerializedExceptionPBImpl.java:106)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$Container.launch(ContainerLauncherImpl.java:163)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$EventProcessor.run(ContainerLauncherImpl.java:394)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)

2025-09-24 06:16:09,053 INFO mapreduce.Job:  map 100% reduce 100%
2025-09-24 06:16:10,090 INFO mapreduce.Job: Job job_1758694526692_0001 failed with state FAILED due to: Task failed task_1758694526692_0001_m_000000
Job failed as tasks failed. failedMaps:1 failedReduces:0 killedMaps:0 killedReduces: 0

2025-09-24 06:16:10,179 INFO mapreduce.Job: Counters: 10
	Job Counters
		Failed map tasks=4
		Killed reduce tasks=1
		Launched map tasks=4
		Other local map tasks=3
		Data-local map tasks=1
		Total time spent by all maps in occupied slots (ms)=2
		Total time spent by all reduces in occupied slots (ms)=0
		Total time spent by all map tasks (ms)=2
		Total vcore-milliseconds taken by all map tasks=2
		Total megabyte-milliseconds taken by all map tasks=2048
2025-09-24 06:16:10,203 INFO client.DefaultNoHARMFailoverProxyProvider: Connecting to ResourceManager at /172.16.79.129:8032
2025-09-24 06:16:10,251 INFO mapreduce.JobResourceUploader: Disabling Erasure Coding for path: /tmp/hadoop-yarn/staging/zhihaojiang/.staging/job_1758694526692_0002
2025-09-24 06:16:10,287 INFO input.FileInputFormat: Total input files to process : 0
2025-09-24 06:16:10,723 INFO mapreduce.JobSubmitter: number of splits:0
2025-09-24 06:16:10,793 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1758694526692_0002
2025-09-24 06:16:10,793 INFO mapreduce.JobSubmitter: Executing with tokens: []
2025-09-24 06:16:11,021 INFO impl.YarnClientImpl: Submitted application application_1758694526692_0002
2025-09-24 06:16:11,029 INFO mapreduce.Job: The url to track the job: http://linux-24-10:8088/proxy/application_1758694526692_0002/
2025-09-24 06:16:11,029 INFO mapreduce.Job: Running job: job_1758694526692_0002
2025-09-24 06:16:19,174 INFO mapreduce.Job: Job job_1758694526692_0002 running in uber mode : false
2025-09-24 06:16:19,182 INFO mapreduce.Job:  map 0% reduce 0%
2025-09-24 06:16:22,264 INFO mapreduce.Job: Task Id : attempt_1758694526692_0002_r_000000_0, Status : FAILED
Container launch failed for container_1758694526692_0002_01_000002 : org.apache.hadoop.yarn.exceptions.InvalidAuxServiceException: The auxService:mapreduce_shuffle does not exist
	at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateExceptionImpl(SerializedExceptionPBImpl.java:171)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateException(SerializedExceptionPBImpl.java:182)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.deSerialize(SerializedExceptionPBImpl.java:106)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$Container.launch(ContainerLauncherImpl.java:163)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$EventProcessor.run(ContainerLauncherImpl.java:394)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)

2025-09-24 06:16:24,312 INFO mapreduce.Job: Task Id : attempt_1758694526692_0002_r_000000_1, Status : FAILED
Container launch failed for container_1758694526692_0002_01_000003 : org.apache.hadoop.yarn.exceptions.InvalidAuxServiceException: The auxService:mapreduce_shuffle does not exist
	at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateExceptionImpl(SerializedExceptionPBImpl.java:171)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateException(SerializedExceptionPBImpl.java:182)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.deSerialize(SerializedExceptionPBImpl.java:106)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$Container.launch(ContainerLauncherImpl.java:163)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$EventProcessor.run(ContainerLauncherImpl.java:394)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)

2025-09-24 06:16:27,344 INFO mapreduce.Job: Task Id : attempt_1758694526692_0002_r_000000_2, Status : FAILED
Container launch failed for container_1758694526692_0002_01_000004 : org.apache.hadoop.yarn.exceptions.InvalidAuxServiceException: The auxService:mapreduce_shuffle does not exist
	at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
	at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
	at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
	at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateExceptionImpl(SerializedExceptionPBImpl.java:171)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.instantiateException(SerializedExceptionPBImpl.java:182)
	at org.apache.hadoop.yarn.api.records.impl.pb.SerializedExceptionPBImpl.deSerialize(SerializedExceptionPBImpl.java:106)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$Container.launch(ContainerLauncherImpl.java:163)
	at org.apache.hadoop.mapreduce.v2.app.launcher.ContainerLauncherImpl$EventProcessor.run(ContainerLauncherImpl.java:394)
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
	at java.lang.Thread.run(Thread.java:750)

2025-09-24 06:16:31,375 INFO mapreduce.Job:  map 0% reduce 100%
2025-09-24 06:16:32,399 INFO mapreduce.Job: Job job_1758694526692_0002 failed with state FAILED due to: Task failed task_1758694526692_0002_r_000000
Job failed as tasks failed. failedMaps:0 failedReduces:1 killedMaps:0 killedReduces: 0

2025-09-24 06:16:32,439 INFO mapreduce.Job: Counters: 7
	Job Counters
		Failed reduce tasks=4
		Launched reduce tasks=4
		Total time spent by all maps in occupied slots (ms)=0
		Total time spent by all reduces in occupied slots (ms)=2
		Total time spent by all reduce tasks (ms)=2
		Total vcore-milliseconds taken by all reduce tasks=2
		Total megabyte-milliseconds taken by all reduce tasks=2048

错误信息

1
org.apache.hadoop.yarn.exceptions.InvalidAuxServiceException: The auxService:mapreduce_shuffle does not exist

这是YARN未正确配置MapReduce Shuffle服务导致的
YARN 需要知道如何为MapReduce任务提供Shuffle服务 用于 Map → Reduce 的数据传输
这个服务叫 mapreduce_shuffle 必须在 所有 NodeManager 节点 的 yarn-site.xml 中显式启用
我们需要配置yarn-site.xml

  1. 编辑主节点的 yarn-site.xml
1
2
cd ~/hadoop/etc/hadoop
nano yarn-site.xml

在 标签内 添加以下属性

1
2
3
4
5
6
7
8
9
<property>
  <name>yarn.nodemanager.aux-services</name>
  <value>mapreduce_shuffle</value>
</property>

<property>
  <name>yarn.nodemanager.aux-services.mapreduce_shuffle.class</name>
  <value>org.apache.hadoop.mapred.ShuffleHandler</value>
</property>
  1. 将配置同步到所有从节点
1
2
3
4
5
6
7
# 复制到两个从节点 用你的实际主机名或 IP）
scp yarn-site.xml linux-24-10-node2:~/hadoop/etc/hadoop/
scp yarn-site.xml linux-24-10-node4:~/hadoop/etc/hadoop/

# 或者使用IP
# scp yarn-site.xml zhihaojiang@172.16.79.100:~/hadoop/etc/hadoop/
# scp yarn-site.xml zhihaojiang@172.16.79.120:~/hadoop/etc/hadoop/
  1. 重启 YARN 服务
1
2
3
# 在主节点执行
stop-yarn.sh
start-yarn.sh
  1. 验证 NodeManager 是否加载了 shuffle 服务
1
2
3
# 查看最新 NodeManager 日志
ls -lt ~/hadoop/logs/ | grep nodemanager
cat ~/hadoop/logs/hadoop-zhihaojiang-nodemanager-*.log | grep -i shuffle

这会输出很多东西 只要看到有

1
Registered auxiliary service mapreduce_shuffle, service class org.apache.hadoop.mapred.ShuffleHandler

就说明加载了 shuffle 服务

  1. 重新运行 Grep 示例
1
2
3
4
5
6
7
8
# 先删除旧的输出目录（如果存在）
hdfs dfs -rm -r /user/zhihaojiang/grep/output

# 重新运行
hadoop jar ~/hadoop/share/hadoop/mapreduce/hadoop-mapreduce-examples-*.jar grep \
  /user/zhihaojiang/grep/input \
  /user/zhihaojiang/grep/output \
  'dfs[a-z.]*'
  • Title: Hadoop部署--验证分布式是否成功
  • Author: 姜智浩
  • Created at : 2025-09-24 11:45:14
  • Updated at : 2025-09-24 15:30:29
  • Link: https://super-213.github.io/zhihaojiang.github.io/2025/09/24/20250924Hadoop部署--验证分布式是否成功/
  • License: This work is licensed under CC BY-NC-SA 4.0.
On this page
Hadoop部署--验证分布式是否成功
  1. 前提条件
  2. 启动
  3. 检查部署是否正常
  4. 检查运行是否正常
    1. 问题1
    2. 问题2
