机器学习作业笔记

姜智浩 Lv4
  2025-03-28 11:45:14 2025-03-28 11:45:14 Created   2025-03-30 14:43:41 2025-03-30 14:43:41 Updated      1.7k Words  7 Mins

我们需要利用回归分析预测世界大学综合得分

#Jupyter notebook代码
基本库导入

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import pandas as pd
import numpy as np
import seaborn as sns
import matplotlib.pyplot as plt
%matplotlib inline
from sklearn.model_selection import train_test_split
from sklearn.linear_model import LinearRegression
from sklearn.ensemble import RandomForestRegressor
from sklearn.metrics import mean_squared_error,r2_score
from scipy import stats
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import root_mean_squared_error
from sklearn import linear_model
from sklearn import metrics
1
2
university = pd.read_csv('cwurData.csv')
university.head()

此时可能会出现报错

报错信息

File parsers.pyx:574, in pandas._libs.parsers.TextReader.cinit()

File parsers.pyx:663, in pandas._libs.parsers.TextReader._get_header()

File parsers.pyx:874, in pandas._libs.parsers.TextReader._tokenize_rows()

File parsers.pyx:891, in pandas._libs.parsers.TextReader._check_tokenize_status()

File parsers.pyx:2053, in pandas._libs.parsers.raise_parser_error()

File :322, in decode(self, input, final)

UnicodeDecodeError: ‘utf-8’ codec can’t decode bytes in position 3864-3865: invalid continuation byte

不用担心，这是因为pd.read_csv()在不指明encoding时默认使用utf-8编码
这段报错是因为该文件不是使用utf-8进行编码。
我们可以写一段代码判断文件的编码格式

1
2
3
4
5
6
import chardet

with open('cwurData.csv', 'rb') as f:
    university = f.read()
    encoding = chardet.detect(university)
    print(encoding)

之后将其输出的encoding写入pd.read_csv()即可

1
2
university = pd.read_csv('cwurData.csv', encoding='GBK')
university.head()

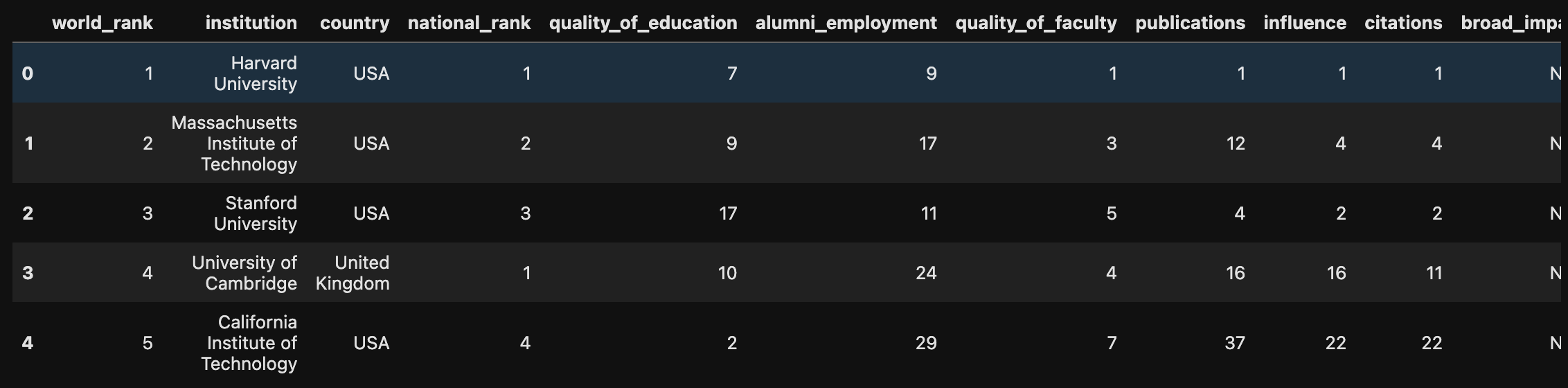

输出结果为
通过该数据可知其数字应该是越小越好
因此相关性应该是负数 且越小越好

之后我们查看文件的维度

1
university.shape

输出结果为:(2200, 14)
说明该文件总共有2200行数据，14个特征

接下来我们分析下文件是否有异常

1

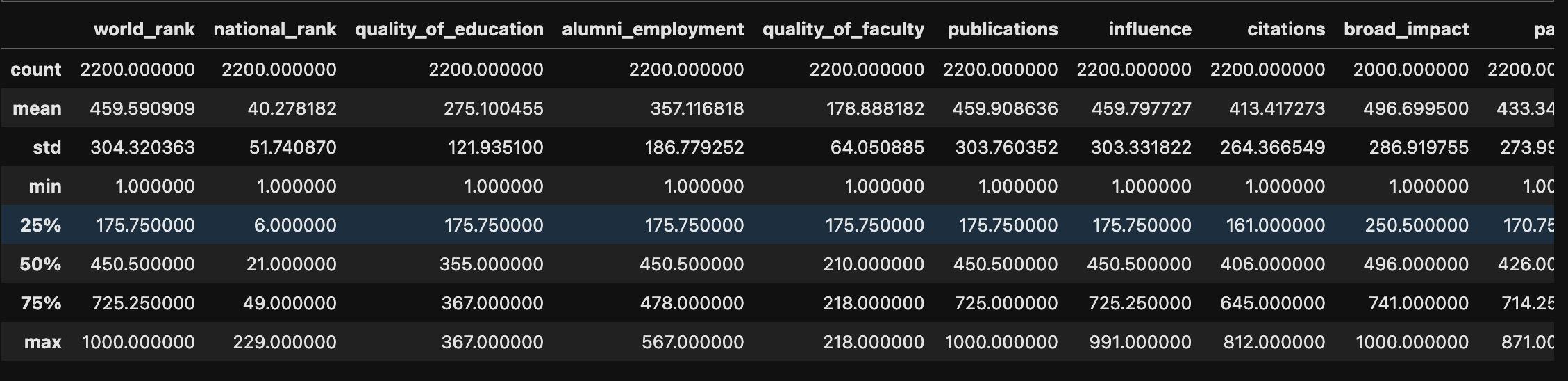

university.describe()

从第一行(count)看到 broad_impact数据与其他数据不同
上述从head()函数我猜测broad_impact列全是NA
仔细查看文件后可知:2012年和2013年的broad_impact存在缺失
其他数据看起来没什么问题 数据质量基本完整

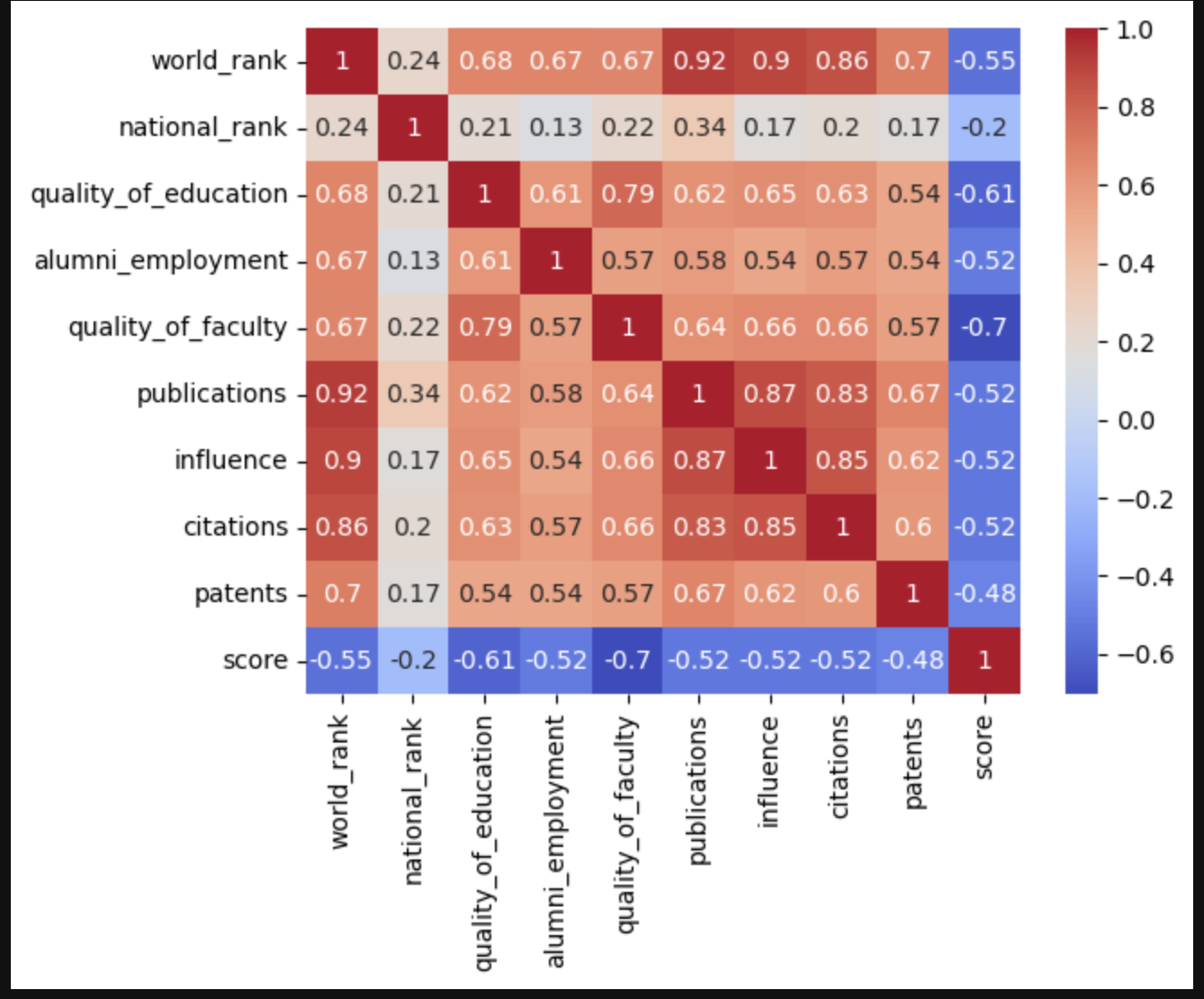

先用相关性矩阵看看各个数据之间的关系

1
2
3
4
5
6
7
8
y = university['score']
X = university.drop(["score","institution","country", "year","broad_impact"],axis=1)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

correlation_matrix = pd.concat([X_train, y_train], axis=1).corr()

sns.heatmap(correlation_matrix, annot=True, cmap='coolwarm')
plt.show()

通过上图可以看到world_rank与publications、influence、citations有强相关性
我们用matplotlib.pyplot库做出这些图

1
2
3
4
5
6
7

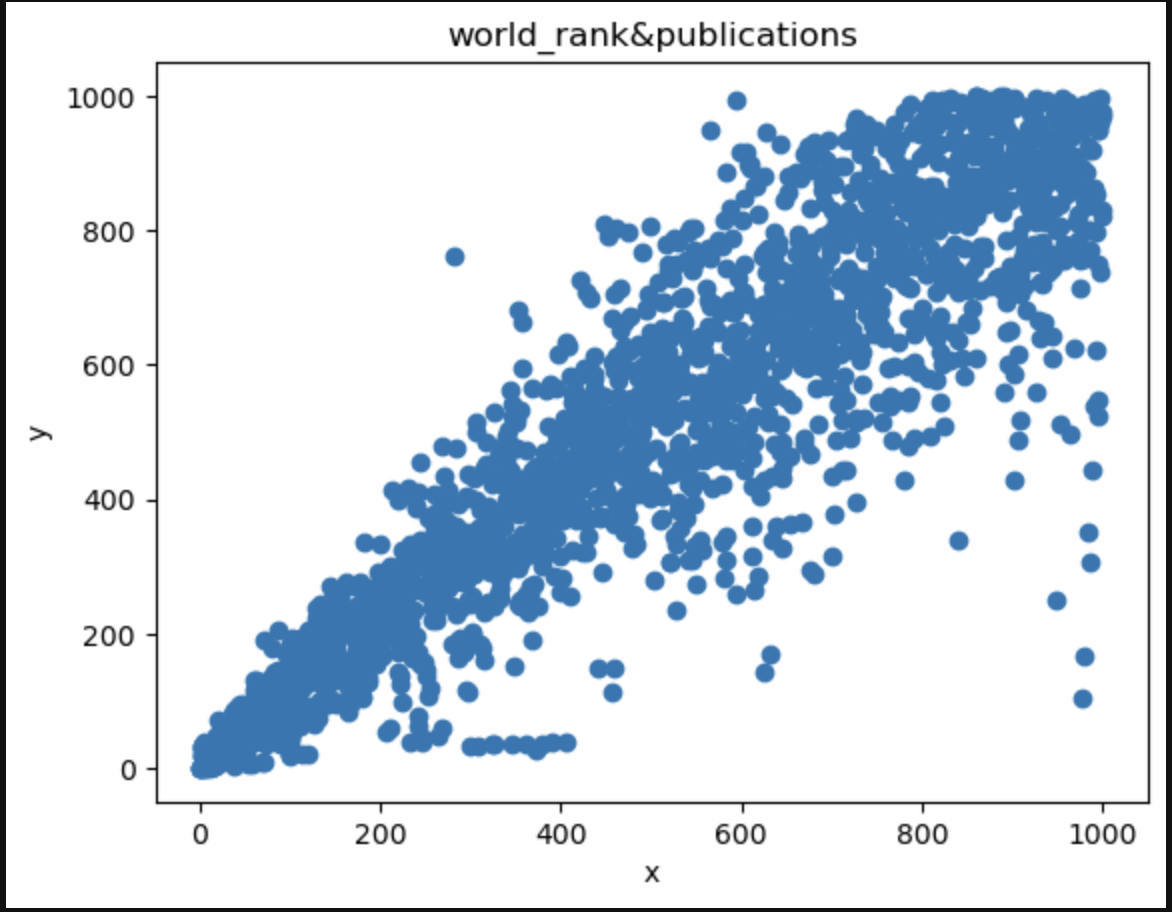

x = university["publications"]
y = university["world_rank"]
plt.scatter(x, y)
plt.xlabel('x')
plt.ylabel('y')
plt.title('world_rank&publications')
plt.show()


1
2
3
4
5
6
7

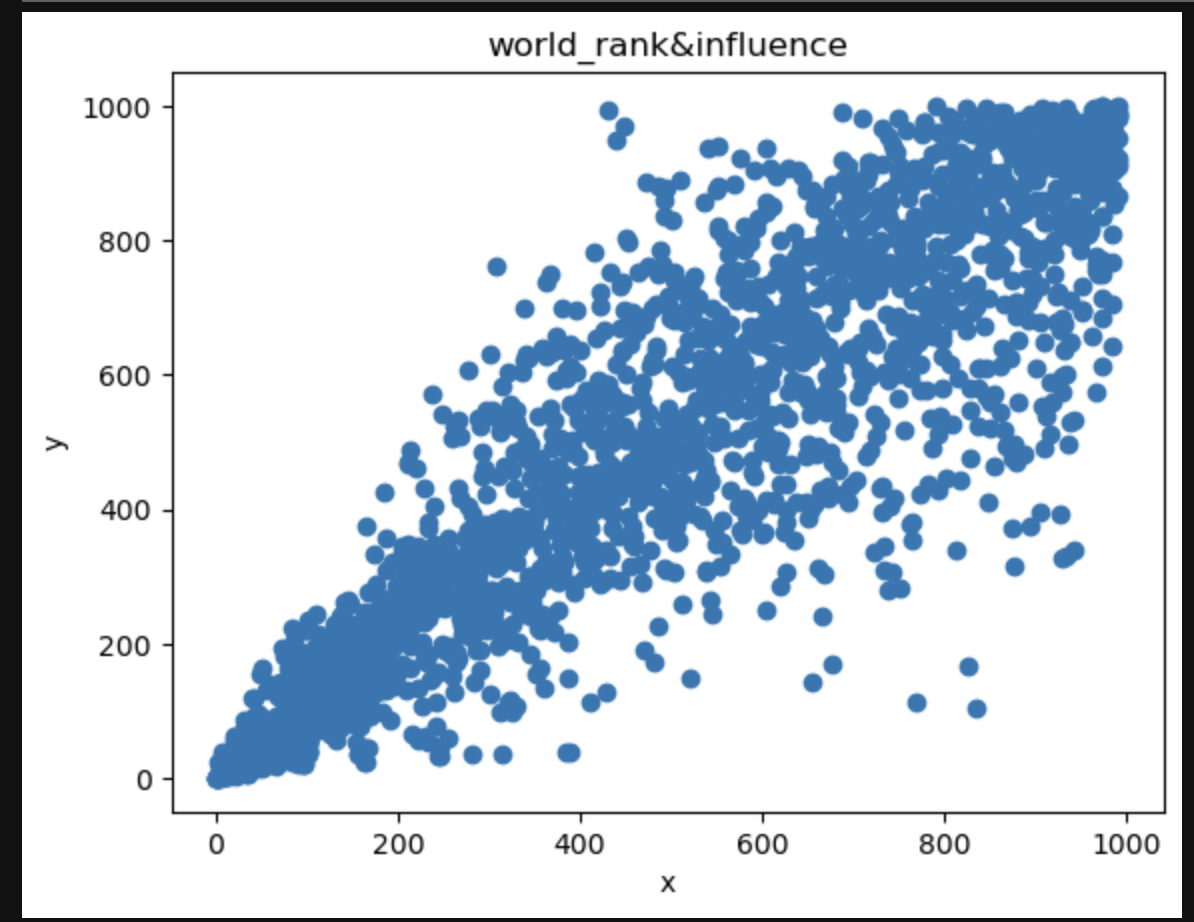

x = university["influence"]
y = university["world_rank"]
plt.scatter(x, y)
plt.xlabel('x')
plt.ylabel('y')
plt.title('world_rank&influence')
plt.show()


1
2
3
4
5
6
7

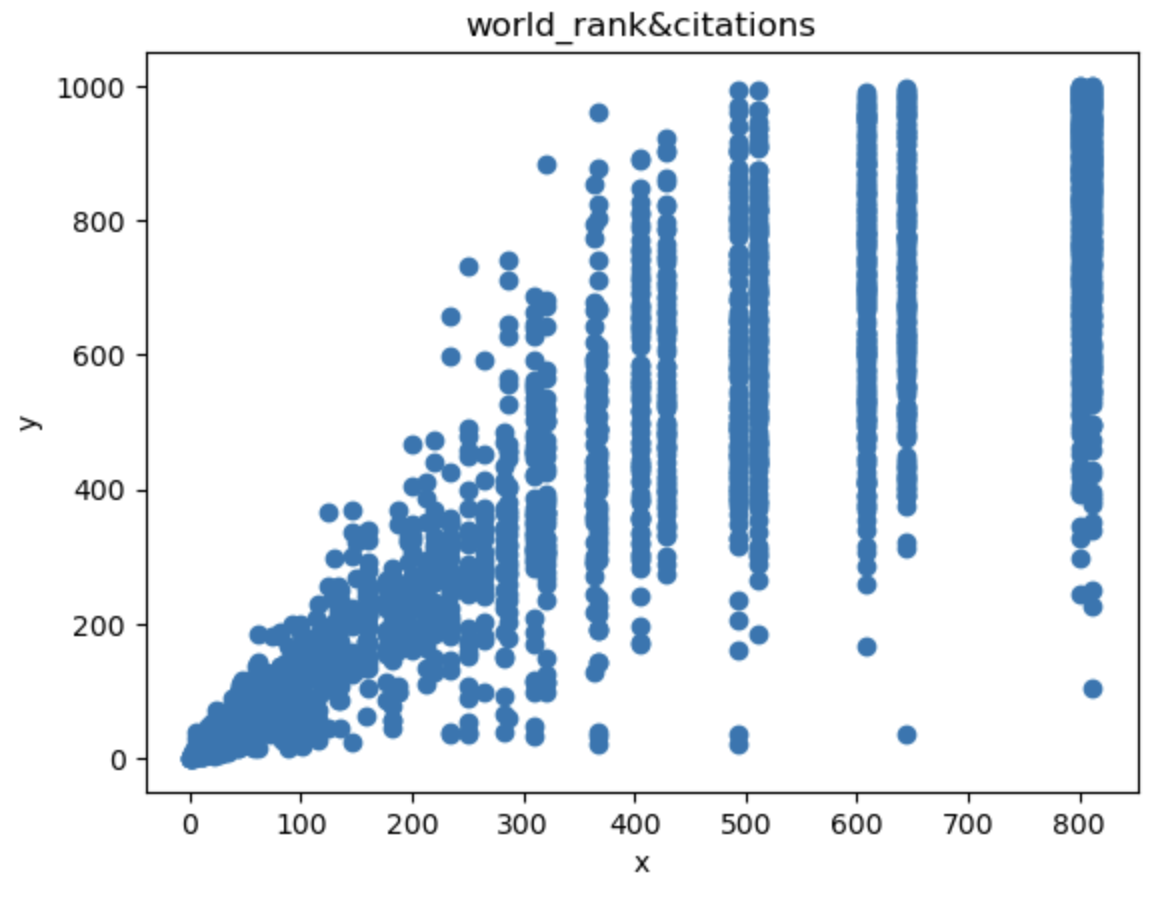

x = university["citations"]
y = university["world_rank"]
plt.scatter(x, y)
plt.xlabel('x')
plt.ylabel('y')
plt.title('world_rank&citations')
plt.show()


从上述三幅图可以看到world_rank与publications、influence有强相关性
world_rank与citations也有一定的相关性 但不是很明显
再继续做几张图看看其他数据之间的关系怎么样

1
2
3
4
5
6
7

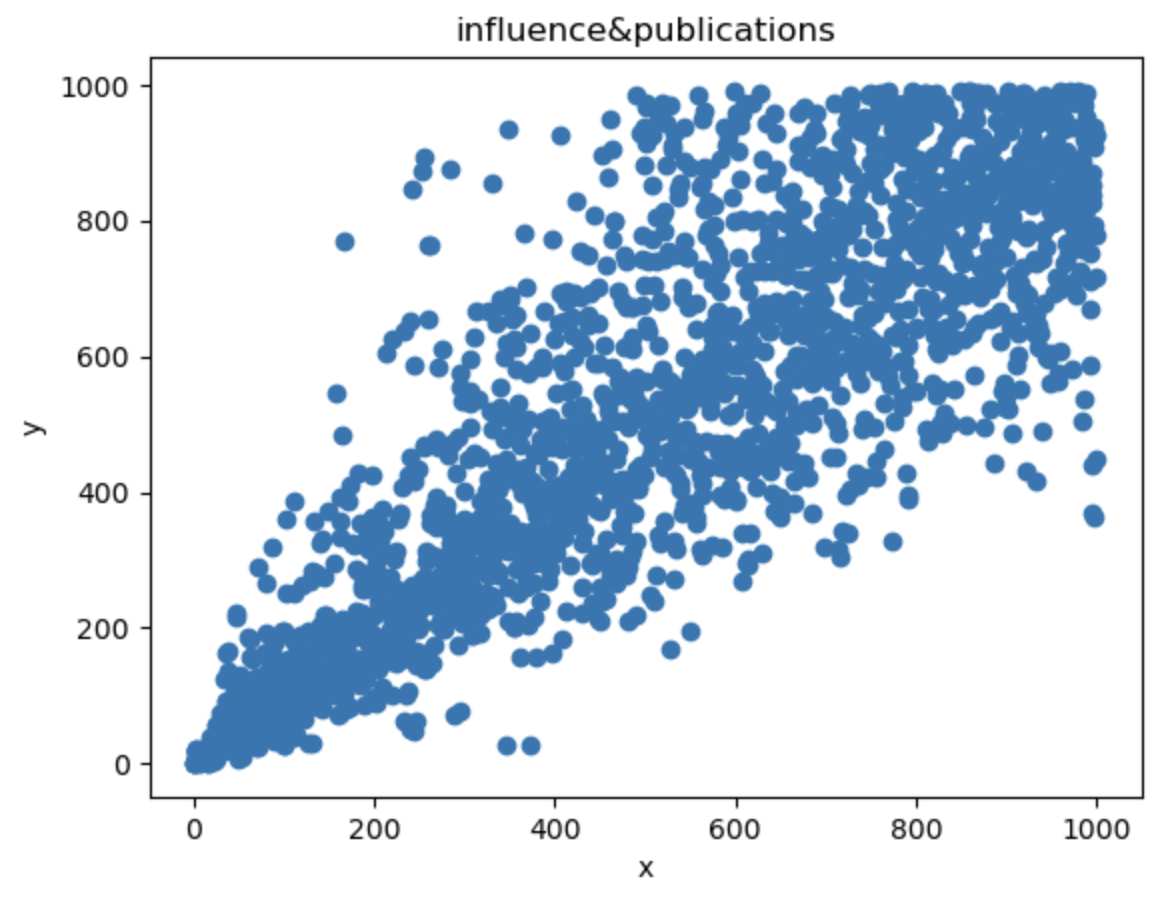

x = university["publications"]
y = university["influence"]
plt.scatter(x, y)
plt.xlabel('x')
plt.ylabel('y')
plt.title('influence&publications')
plt.show()

从图中可以看出点近似集中在一条直线上
说明出版物与影响力成正比

1
2
3
4
5
6
7

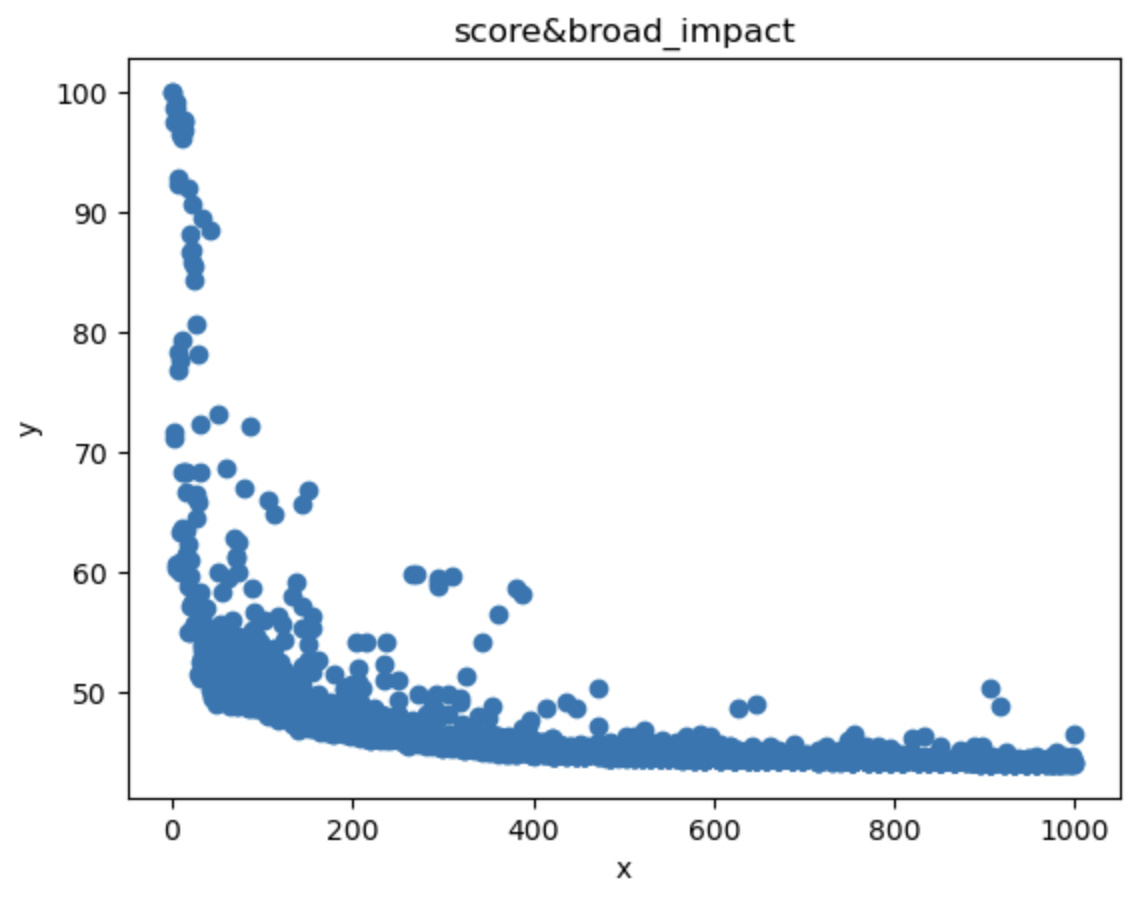

x = university["broad_impact"]
y = university["score"]
plt.scatter(x, y)
plt.xlabel('x')
plt.ylabel('y')
plt.title('score&broad_impact')
plt.show()

从图中可以看出broad_impact与score成非线性关系 broad_impact的大小与score无关

用相关性进行检测

1
2
3
4
x = university["broad_impact"]
y = university["score"]
correlation = x.corr(y)
print("r:", correlation)

输出结果为:r: -0.5315904271503679

呈现负相关 因此确定 broad_impact的大小与score无关
并且broad_impact中存在缺失值
缺失值的处理一般会使用用众数填充、前或后一个数填充、删除缺失列来处理
这里broad_impact的大小与score无关
因此可以将此列删去
同时也可以降低维度

1
2
3
4
5
6
7
8
9
10
11
12
y = university['score']
X = university.drop(["score","institution","country", "year","broad_impact"],axis=1)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

lr = LinearRegression()
lr.fit(X_train, y_train)

lr.intercept_

coefs_lr = pd.Series(lr.coef_).round()
coefs_lr.index = X_train.columns
coefs_lr

其结果为:
63.60601390140695

world_rank 0.0
national_rank -0.0
quality_of_education -0.0
alumni_employment -0.0
quality_of_faculty -0.0
publications -0.0
influence -0.0
citations -0.0
patents -0.0
dtype: float64

说明模型拟合得不好
查看其均方根误差和决定系数

1
2
3
4
5
lr_train_pred = lr.predict(X_train)
lr_test_pred = lr.predict(X_test)

print ("训练集上的均方根误差和决定系数分别为:", root_mean_squared_error(lr_train_pred,y_train), r2_score(lr_train_pred,y_train))
print ("测试集上的均方根误差和决定系数分别为:", root_mean_squared_error(lr_test_pred,y_test), r2_score(lr_test_pred,y_test))

输出结果为:
训练集上的均方根误差和决定系数分别为: 5.441831802594455 0.079429595738992
测试集上的均方根误差和决定系数分别为: 5.369301125131177 0.06344204755145388

上述系数过小可能是数值之间差别过大导致拟合得不好
将其进行标准化

1
2
3
4
5
6
7
8
9
10
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)

lr = LinearRegression()
lr.fit(X_train_scaled, y_train)
coefs_lr = pd.Series(lr.coef_).round()
coefs_lr.index = X_train.columns
coefs_lr

lr.intercept_

输出结果为:
world_rank 0.0
national_rank -0.0
quality_of_education -0.0
alumni_employment -1.0
quality_of_faculty -4.0
publications -0.0
influence -0.0
citations -0.0
patents -0.0
dtype: float64

47.83457386363636

模型得到的结果很低 说明拟合得不好
更换其他线性回归模型试试

岭回归

1
2
3
4
5
6
7
ridge= linear_model.Ridge(alpha=0.05)
ridge.fit(X_train,y_train)
Y_hat = ridge.predict(X_test)

print("截距为：", ridge.intercept_)
print ("回归系数为：", ridge.coef_)
print ("RMSE:", np.sqrt(metrics.mean_squared_error(y_test, Y_hat)))

输出结果为:
截距为： 63.60601382257282
回归系数为： [ 0.00116895 -0.00608447 -0.00380894 -0.00592045 -0.06344228 -0.00045937
-0.0009899 -0.00046924 -0.00164281]
RMSE: 5.369301120766853

lasso回归

1
2
3
4
5
6
7
lasso= linear_model.Lasso(alpha=0.05)
lasso.fit(X_train,y_train)
Y_hat=lasso.predict(X_test)

print("截距为：",lasso.intercept_)
print ("回归系数为：", lasso.coef_)
print ("RMSE:", np.sqrt(metrics.mean_squared_error(y_test, Y_hat)))

输出结果为:
截距为： 63.602800047243974
回归系数为： [ 0.00115484 -0.00606551 -0.00381082 -0.00591616 -0.06342471 -0.00045677
-0.00098495 -0.00046729 -0.00164163]
RMSE: 5.369181579518303

弹性网回归

1
2
3
4
5
6
7
elastic= linear_model.ElasticNet(alpha=0.1,l1_ratio=0.4)
elastic.fit(X_train,y_train)
y_hat = elastic.predict(X_test)

print("截距为：",elastic.intercept_)
print ("回归系数为：", elastic.coef_)
print ("RMSE:", np.sqrt(metrics.mean_squared_error(y_test, Y_hat)))

输出结果为:
截距为： 63.60327653271375
回归系数为： [ 0.00115777 -0.0060693 -0.00381124 -0.00591707 -0.06342543 -0.00045734
-0.00098603 -0.00046779 -0.00164194]
RMSE: 5.369181579518303

可以看到这些回归得到的结果都不好
说明这个不是呈线性关系

我们使用随机森林进行尝试

1
2
3
4
5
6
7
rf = RandomForestRegressor()
rf.fit(X_train, y_train)
rf_train_pred = rf.predict(X_train)
rf_test_pred = rf.predict(X_test)

print ("训练集上的均方根误差和决定系数分别为:", root_mean_squared_error(rf_train_pred,y_train), r2_score(rf_train_pred,y_train))
print ("测试集上的均方根误差和决定系数分别为:", root_mean_squared_error(rf_test_pred,y_test), r2_score(rf_test_pred,y_test))

输出结果为:
训练集上的均方根误差和决定系数分别为: 0.396126717281446 0.9974538720434839
测试集上的均方根误差和决定系数分别为: 1.0185613846393418 0.9808937922886296

可以看到 决定系数为0.99 0.98以上 说明模型拟合得很好
